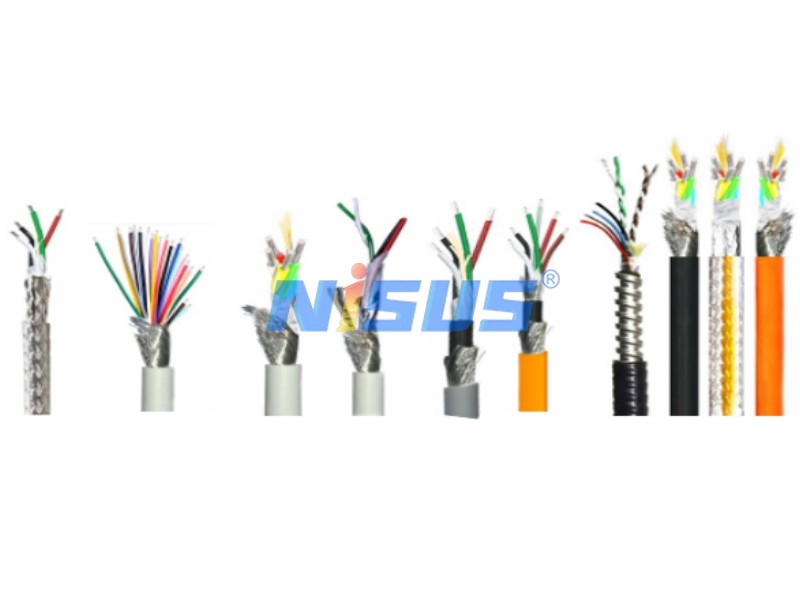

Connecting Sensor Cables to Controller Modules Step by Step
Aug 13, 2026
You connect a sensor cable directly to a plc input module. Correct wiring prevents short circuits and protects signal integrity. Match Brown +24VDC, Blue 0VDC, and Black signal lines for a 3-wire sensor. Terminate a 2-wire sensor on the plc input. Align NPN sensor logic with Nisus plc input configurations. The plc input reads your sensor accurately.
Key Takeaways
Safety steps prevent serious accidents. Disconnect power sources and test voltage levels before touching any sensor wires.
Color codes streamline cable connections. Match brown wires to positive power, blue to ground, and black to signals.
Grounding shield wires blocks electrical noise. Check green status LEDs to verify clear signal readings on modules.
Understanding Sensor Wiring Fundamentals
Deciphering Wire Color Codes
Standard IEC color conventions streamline Industrial Equipment installation. You connect brown wires to positive power. You attach blue wires to ground reference. Black wires transmit primary digital signal output. A white wire carries secondary signal lines. You handle every Multi-core cable carefully.
A 3-wire sensor uses standard color codes directly. You can connect a 3-wire sensor to a plc input module. You attach power leads to power terminals. You route the output from the 3-wire sensor to a plc input terminal. Each 3-wire sensor sends data reliably. You can also connect a 3-wire sensor through terminal blocks. A 2-wire sensor connects in series with a plc input channel. You attach one lead of the 2-wire sensor to power and the second lead to the plc input. For a single-ended analog channel, you tie the negative terminal directly to the module common terminal.
Matching PNP NPN Sinking Sourcing Logic
You must match PNP and NPN logic correctly to maintain signal integrity. A PNP type sources positive voltage to a sinking plc input module. An NPN type sinks current from a sourcing plc input port.
Never mix PNP and NPN sensors on the same Common (M) terminal group. Doing so will lead to 'Ghost Signals' or short circuits, which directly degrade signal integrity and can cause hardware damage or system downtime.
Region
Dominant Polarity
Market Share / Prevalence
Europe
PNP
98-100% of new installations
North America
Mixed
Both polarities supported
Connecting PNP devices to a sourcing plc input channel leaves the plc input permanently OFF. Avoid these common wiring mistakes:
Incorrect wiring
Loose common connections
Improper grounding
Mixing PNP and NPN signal types
Shielding not properly terminated
Your Sensor cable setup links each sensor to ensure accurate plc input signal reading on the plc.
Preparing the Sensor Cable and Module
Power Isolation and Safety Setup
You isolate power before handling any sensor cable in the control enclosure. Work on energized parts causes severe shock risks. Follow OSHA 29 CFR 1910.147 procedures to establish safety.
Shut down the machine using standard controls.
Disconnect all energy sources at the main switch.
Apply panel door locks and lockout tags.
Verify zero energy with a meter.
Never skip verification. Assuming equipment is de-energized without testing causes serious electrical accidents.
Water on control panel surfaces lowers electrical resistance. Keep working conditions dry around your primary plc module.
Stripping and Terminating Conductor Ends
Preparing a sensor cable requires clean insulation removal. Automatic strippers pull outer jackets cleanly off 22 AWG sensor conductors. These tools prevent nicking delicate internal wire strands. You maintain accurate signal transmission when copper remains undamaged. Verify insulation resistance reaches at least 100 MΩ/km at 500VDC to protect the signal path.
Tool Category
Mechanism & Key Feature
Primary Sensor Application
Automatic Strippers
Cuts and pulls insulation while self-adjusting to gauge
Ideal for 22 AWG sensor wires
Thermal Strippers
Uses heat to melt outer jacket without mechanical stress
Crucial for delicate signal wires
Strip six millimeters of insulation from the field sensor lead before mounting the primary sensor unit. Insert each conductor into its designated plc input clamp on the main plc rack. Connect the active lead to the digital plc input terminal. Route the reference lead to the plc input common. An unstable plc input terminal disrupts signal continuity and creates a false plc input reading. Secure each terminal clamp tightly. Check your plc schematic carefully. Confirm every input channel receives the correct input feed. Proper input connection ensures reliable input processing across every input port on your main plc assembly.
Step-by-Step Wiring Procedure
Wiring Sensor Cables to Nisus Modules
You execute a structured wiring procedure to guarantee system reliability. Align each conductor color with the labeled terminals on your Nisus controller module. You connect the brown wire from your 3-wire sensor directly to the designated positive 24V DC terminal block. Attach the blue wire to the 0V DC common reference point. Route the black signal lead from your 3-wire sensor to the digital plc channel terminal. Inspect your sensor cable assembly before securing final input placements.
Follow this sequence to terminate each 3-wire sensor onto your plc rack:
Strip six millimeters of outer insulation off every conductor cleanly.
Insert the brown wire into the power supply input terminal clamp.
Press the blue lead into the common power rail connection.
Secure the black output line inside the specific digital input port.
Inspect every sensor terminal connector after completing physical placement. Tighten terminal screws firmly to maintain electrical continuity. Push-in tension clamps require complete conductor insertion to ensure correct input connection. Loose hardware disrupts input signal transfer across your Nisus module. A secure physical joint prevents intermittent faults on the active plc channel.
Shielding Grounding and Diagnostic Verification
Grounding your sensor cable shield prevents external electrical noise from corrupting delicate control lines. You must isolate shield terminations properly to maintain signal clarity and protect overall input channel response.
Signal Type
Frequency Range
Shield Grounding
Typical Applications
Analog - Low Level
0 - 1 kHz
Single-sided (source end)
Process instruments, transmitters
Analog - Standard
0 - 10 kHz
Single-sided (receiver end)
plc analog input signal leads (e.g., 0-10V, 4-20mA signals)
Standard control architecture uses single-ended grounding for shielded field cables. Follow these established practices to manage interference:
Avoid Ground Loops: Grounding at both ends creates circulating currents when ground potentials differ, inducing noise and causing inaccurate sensor readings.
Maintain a Single Reference Point: Grounding only at the plc side provides a stable reference, keeping the instrument end floating to block field potential differences.
Control Noise Flow Direction: Induced electromagnetic interference drains away from the delicate sensor toward the grounded plc enclosure.
Energize the Nisus controller after finishing all physical terminations to verify proper input data flow across the plc bus. Observe the input status LEDs located on the front faceplate of the input module. Actuate your primary field sensor manually. Check whether the corresponding plc channel LED illuminates bright green. A dark LED signals incorrect polarity, broken signal lines, or an inactive input port. Confirm your plc system readings for each connected sensor before putting your Industrial Equipment automation line into full operation on the main plc network.
Error-free wiring requires care. You verify sensor colors, sensor logic, sensor operation, and sensor shield grounding. Check status LEDs during power-up for plc input signal health. Dark LEDs flag a bad sensor, failed plc input line, or reversed plc input terminal. Update drawings, test plc input signal paths, and label each sensor cable per plc input.
FAQ
How do you inspect a damaged sensor cable?
You inspect your Sensor cable for sheath damage. Next, measure voltage at the plc card. Verify signal transmission directly on the primary sensor input terminal.
What causes a plc input channel fault?
You check your plc module when an input port stays dark. Inverted logic prevents signal transfer. Confirm polarity before connecting your Industrial Equipment onto the plc system.
How do you wire a multi-core sensor input?
Route each Multi-core cable away from noise sources. Connect your 3-wire sensor to a common bus. A stable reference protects every sensor input feed to the plc.
