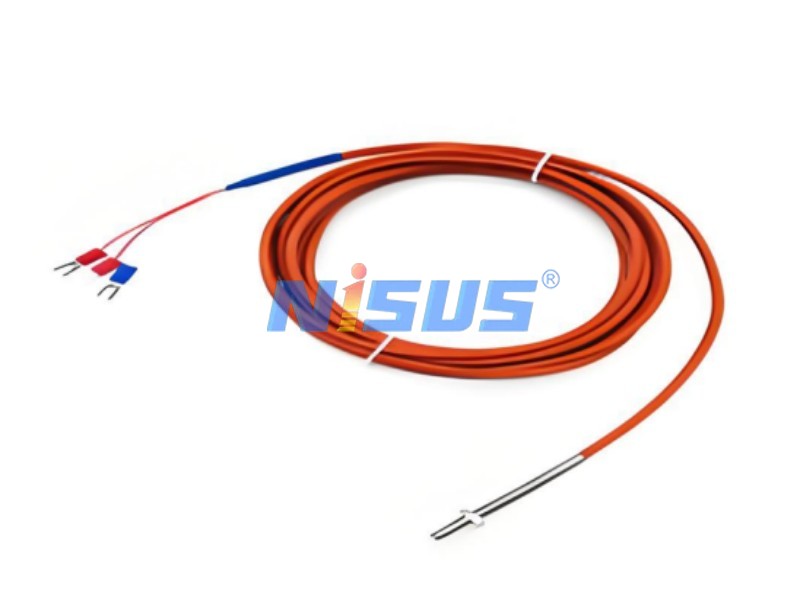

Wrank-191 Thermocouple Temperature Sensor for Cooking and Heating Equipment Monitoring

High Sensitivity Kitchen Thermocouple Temperature Sensor

Wrank-191 Thermocouple Temperature Sensor for Cooking and Heating Equipment Monitoring

Name: Wrank-191 Thermocouple Temperature Sensor for Cooking and Heating Equipment Monitoring
Availability: InStock

This thermocouple is suitable for temperature measurement and control in indoor and outdoor barbecues, grills, ovens, and other similar applications, and is a wireless digital kitchen temperature sensor. It features finely designed temperature compensation wires tailored to the shape and size requirements of the temperature probe, with multiple temperature measurement points for convenient and safe food temperature detection.

Product Advantages:

• High flexibility: Compact structure, easy to install and use.

• Temperature measurement: Wide operating temperature range, good temperature stability, and high reliability.

• Material: High sensitivity and rapid response.

Customization type: Customized

Inquiry Now

Ultra-fine thermocouples & temperature sensing compensation wires

Solution

Performance Parameters

Structural Dimensions

Extremely fine hybrid wire/armored hybrid wire + insulation + stainless steel components

Color Appearance

Standard (PT based on customer requirements)

Application Length

(Based on application scenario design requirements)

Pressure Resistance

500V-DC (designed according to electrical power requirements)

Welding Temperature

-50~350°C

Temperature Measurement Accuracy

Level 1/Level 2/Level 3 (subject to customer requirements and verification)

Bending Resistance

( Designed according to application scenarios and lifespan requirements)

Environmental Protection Level

RoHS 2.0/REACH (as per customer requirements)

Lifespan Count

Single-use/Repetitive (as per customer requirements)

Packaging

Roll/transparent tube packaging (as required)

Common Fault Analysis & Treatment

*Full comprehensive maintenance reference for temperature sensing wire and thermocouple systems.

Fault Phenomenon	Possible Reasons	Treatment Method
The thermoelectric potential is smaller than the actual value (Indications are low)	Hot electrode short circuit	Find short circuit; dry moisture or replace damaged insulator.
	Dust accumulation at terminals	Clean up dust.
	Compensating wire short circuit	Strengthen insulation at short circuit point.
	Hot electrode deterioration	Cut off deteriorated section or replace.
	Polarity reversal	Reconnect correctly.
	Compensation wire mismatch	Replace matching wire.
	Improper installation depth	Reinstall according to regulations.
	Cold end compensation issue	Adjust compensator.
	Display instrument mismatch	Replace thermocouple or instrument.
The thermoelectric potential is greater than the actual value	Instrument mismatch	Replace matching thermocouple.
	Wire mismatch	Replace matching compensation wire.
	DC interference	Eliminate interference.
Thermoelectric potential output is unstable	Poor contact	Tighten screws.
	Damaged insulation	Repair insulation.
	Vibration	Shock-absorbing measures.
	Broken hot electrode	Repair or replace.
	External interference	Take shielding measures.
