MIL-Spec Multi-Temperature Resistant Military Cable for Equipment Wiring and Connection

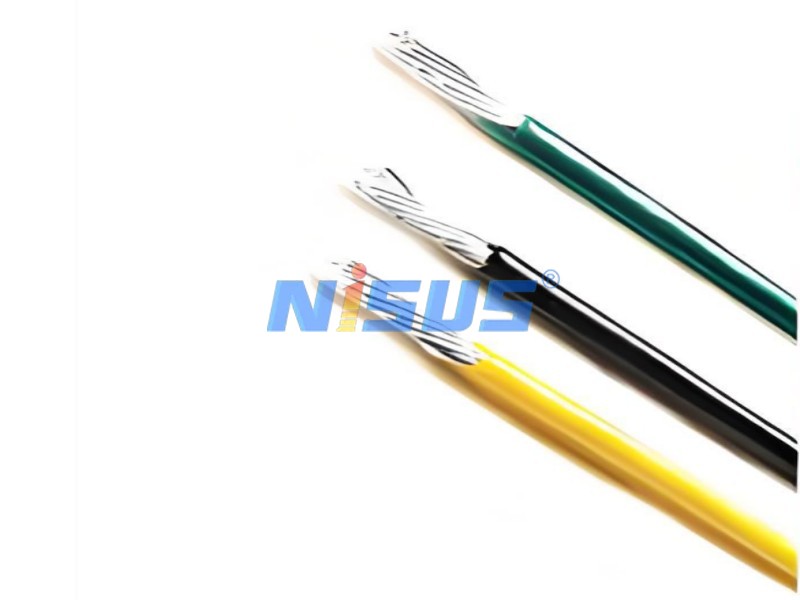

Multi-Temperature Resistant Military Grade Cable

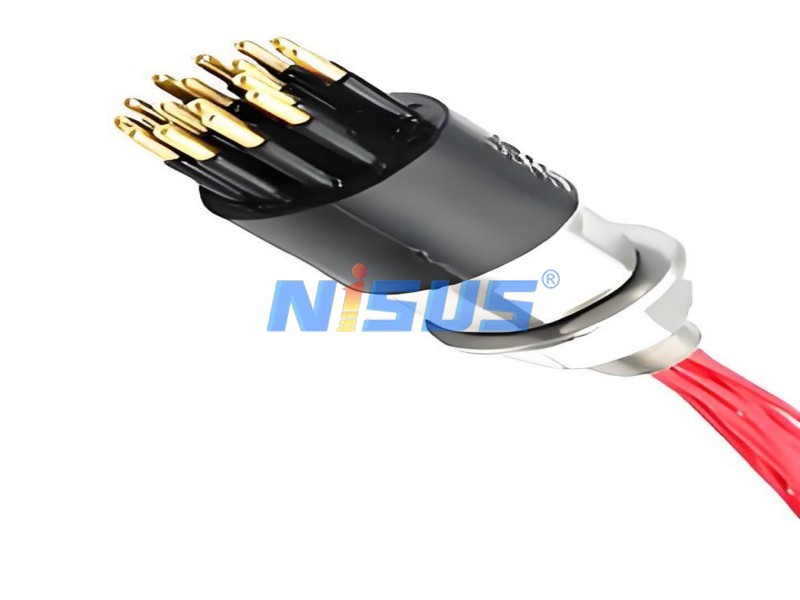

MIL-Spec Cable for Equipment Wiring Applications
Heat Resistant  Military Grade Cable

MIL-Spec Multi-Temperature Resistant Military Cable for Equipment Wiring and Connection

MIL-Spec multi-temperature resistant military cable is designed for reliable wiring and equipment connections across normal, medium, and high temperature conditions. It uses silver- or nickel-plated alloy conductors to ensure stable signal transmission and strong current carrying capacity. The cable offers excellent resistance to moisture, UV, oxidation, and common industrial media such as acids, alkalis, and oils, while maintaining good processability for easy installation and use

Product Advantages:

• Superior Material: Utilizes alloy-plated silver and nickel conductors, ensuring stable signal transmission and strong load-bearing capacity.

• Weather Resistance: Non-hygroscopic, non-flammable, and extremely stable against oxygen and ultraviolet radiation, exhibiting excellent weather resistance.

• Media Resistance: Resistant to acids, alkalis, and corrosion; withstands weak acids, weak alkalis, salt solutions, animal and vegetable oils, and industrial cutting oils.

• Machinability: Easy to process.



Customization type: Customized





Inquiry Now

High-frequency Cable Assembly

Professional Interconnection Solutions for Ultrasonic Scalpel Systems

Military Standard Reference (MIL-Spec)

*A comprehensive list compiled in accordance with MIL-DTL-16878 and MIL-DTL-22759 standards. Please contact us directly for further information and selection assistance.

MIL-Spec Type Insulation / Rating MIL-Spec Type Insulation / Rating
MIL-W-16878/1 PVC. 600V/105℃ MIL-W-22759/1 PTFE. 600V/200℃
MIL-W-16878/2 PVC. 1000V/105℃ MIL-W-22759/2 PTFE. 600V/200℃
MIL-W-16878/3 PVC. 3000V/105℃ MIL-W-22759/3 PTFE. 600V/200℃
MIL-W-16878/4 PTFE. 600V/200℃ MIL-W-22759/4 PTFE. 600V/200℃
MIL-W-16878/5 PTFE. 1000V/200℃ MIL-W-22759/5 MIN. PTFE. 600V/200℃
MIL-W-16878/6 PTFE. 250V/200℃ MIL-W-22759/6 MIN. PTFE. 600V/260℃
MIL-W-16878/7 Silicone. 600V/200℃ MIL-W-22759/7 MIN. PTFE. 600V/200℃
MIL-W-16878/8 Silicone. 1000V/200℃ MIL-W-22759/8 MIN. PTFE. 600V/260℃
MIL-W-16878/10 Poly. 600V/75℃ MIL-W-22759/9 PTFE. 1000V/200℃
MIL-W-16878/11 PTFE. 600V/200℃ MIL-W-22759/10 PTFE. 1000V/260℃
MIL-W-16878/12 PTFE. 1000V/200℃ MIL-W-22759/11 PTFE. 1000V/200℃
MIL-W-16878/13 PTFE. 250V/200℃ MIL-W-22759/12 PTFE. 600V/260℃
MIL-W-16878/14 XLPE. 600V/125℃ MIL-W-22759/13 FEP. 600V/150℃
MIL-W-16878/17 PVC. Poly. 600V/105℃ MIL-W-22759/16 ETFE. 600V/150℃
MIL-W-16878/20 PTFE. 250V/200℃ MIL-W-22759/19 ETFE. 600V/150℃
MIL-W-16878/25 PTFE. 600V/260℃ MIL-W-22759/32 XL-ETFE. 600V/150℃
MIL-W-16878/32 Silicone. 1000V/200℃ MIL-W-22759/44 XL-ETFE. 600V/200℃

Performance Parameters

Structural Dimensions

Single or multi-strand copper, silver/nickel/tin plated

Color & Appearance

Regular

Application Length

Cut to the required length or process according to application requirements.

Rated Voltage

Per selection (Designed per power requirements)

Temperature Range

-60°C ~ 300°C (Designed per power requirements)

Flame Retardancy

HB/V5/V2/V1/V0 (According to customer requirements)

Environmental Grade

RoHS 2.0 / REACH (According to customer requirements)

Packaging

Packaged in rolls or cut strips

Product Application Scenarios

Precision circuit boards and internal electrical wiring

High-frequency Cable Application
  • 🩺 Medical Surgery: Specialized interconnect solutions for ultrasonic scalpels and surgical instruments.
  • 🚀 Aerospace & Defense: Suitable for airborne electronics with strict temperature and weather requirements.
  • 🏭 Industrial Environments: Ideal for wiring in high-temp furnaces or areas exposed to corrosive oils.

Frequently Asked Questions

Providing full technical support for high-precision interconnection needs.

🔥 1. What is the maximum temperature?
Withstands up to 300°C and down to -60°C, depending on the specific model and material selection.
🌡️ 2. Advantage of silver-plated conductors?
Silver plating significantly improves high-frequency transmission efficiency and enhances oxidation resistance at high temperatures.
