Microwave & RF Argon & Helium Electrode Lead Wire & Connector for Ablation Instruments

Microwave & RF Argon & Helium electrode wire & connector

Microwave & RF Argon & Helium Electrode Lead Wire & Connector for Ablation Instruments

Name: Microwave & RF Argon & Helium Electrode Lead Wire & Connector for Ablation Instruments
Availability: InStock

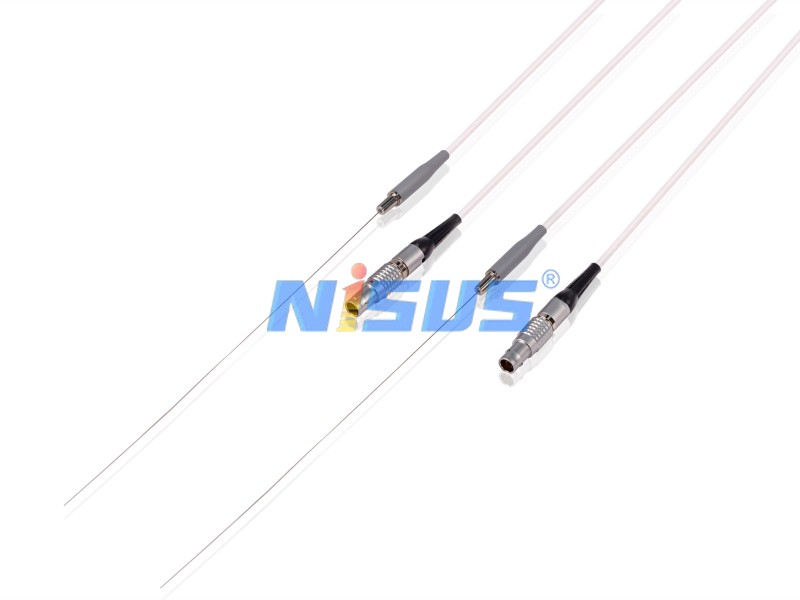

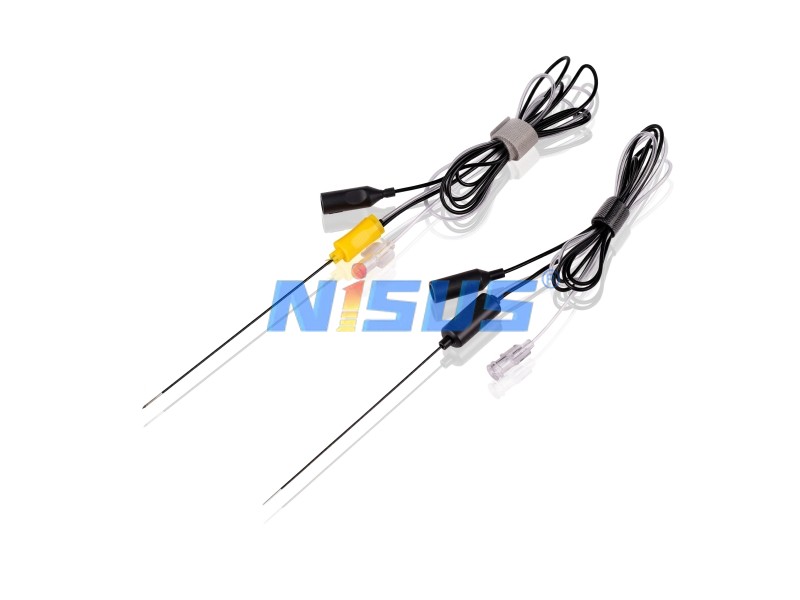

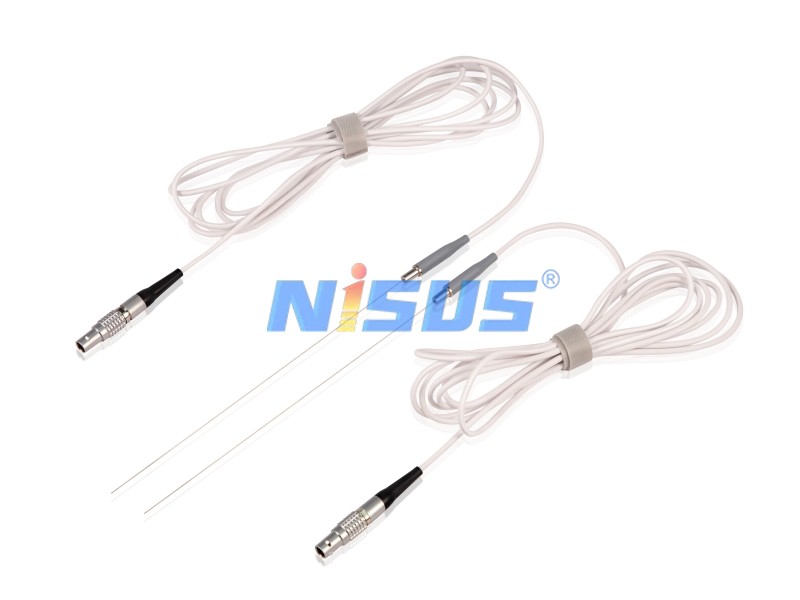

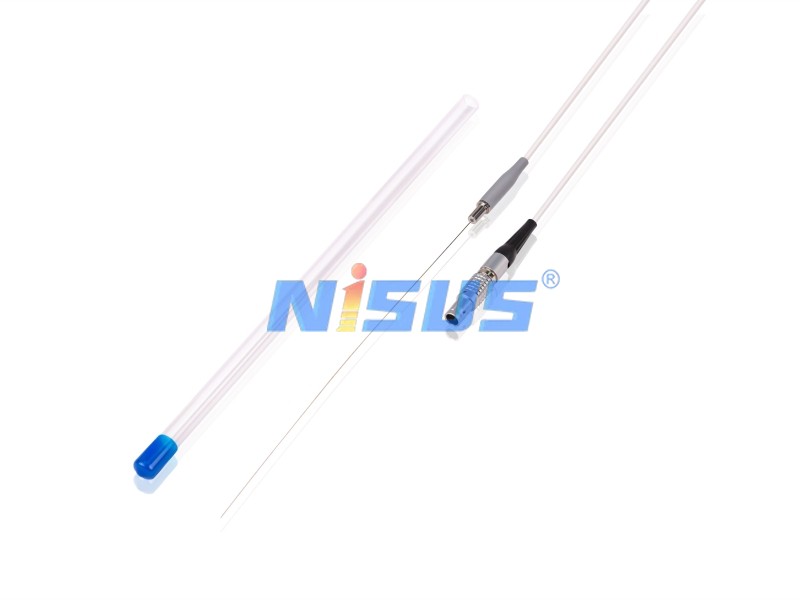

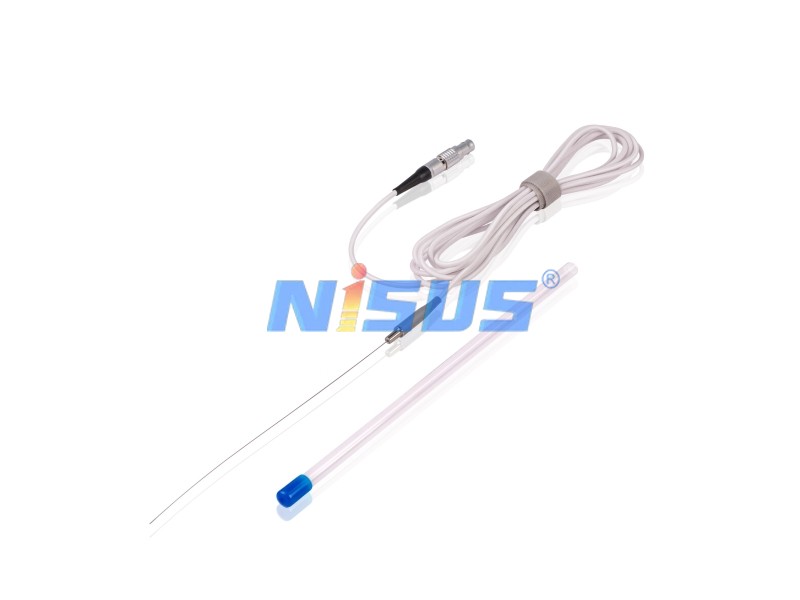

This ablation electrode cable assembly is specifically designed for use with radiofrequency surgical equipment. It features an embedded ultra-fine thermocouple wire, offering low-loss transmission and high-precision temperature measurement.
Product Advantages:
Low Loss: High-purity copper core and double-layer shielding ensure lossless transmission of radiofrequency energy.
Precise Temperature Control and Feedback: Integrated ultra-fine thermocouple sensor provides real-time, accurate feedback of electrode tip temperature.
Compatibility: Compatible with mainstream radiofrequency generators and 3D electrophysiological mapping systems.

Customization type: Customized

Inquiry Now

For radio frequency ablation cable assemblies

Solution

Performance Parameters

Structural Dimensions

Ultra-fine thermocouple + conduit + radio frequency dedicated wire

Color and Appearance

According to customer requirements

Length

According to customer requirements

Pressure Resistance

According to the electrical requirements of equipment operation

Temperature Range

According to the electrical requirements of equipment operation

Transmission Class

EMC Requirements

Bending Resistance

The design is based on the application scenario and service life requirements of the equipment.

Flame Retardant Rating

According to customer requirements

Waterproof Rating

IP69 (as per customer requirements)

Environmental Protection Rating

RoHS 2.0, FDA, Biocompatibility (as per customer requirements)

Mating Cycles

200次

Lifespan

One-time or repetitive (as per customer requirements)

Packaging Method

Aseptic packaging (as per customer requirements)

Validated Sterilization Methods

*Validation and completion by the customer's equipment vendor based on specific clinical needs are required.

Method	Parameters/Conditions
Cleaning	Ultrasonic cleaning and 75% alcohol cleaning
High Temperature	2 Bar ~ 134°C high temperature
Gas and Chemicals	Ethylene oxide and ozone
Irradiation	Electron beam irradiation (dose ≤25 Gy)
Plasma	Low-temperature plasma (H2O2 concentration ≤ 65%)

Product Application Fields

Designed for high-precision radiofrequency ablation in multiple clinical specialties.

Radiofrequency Ablation Surgical Equipment

Designed specifically for ablation devices

🔌 Compatibility: Precision-designed for compatibility with leading global ablation generators and instrument handles.
📏 It features premium insulation and high-tensile durability, providing a reliable link for minimally invasive ablation procedures.
🧵 Manufactured using advanced production processes, strictly adhering to medical technical standards.

FAQ

Get more information about our products. Have a quote today!

🔄 1. Is this cable compatible with original brand generators (e.g., Medtronic, Smith & Nephew)?

Yes. Our cables are precision-engineered with exact pin-maps for seamless compatibility with leading global RF, Microwave, and Argon-Helium ablation hosts. We also offer custom connector molding.

📶 2. How many sterilization cycles can these reusable cables withstand?

A: Built for high-turnover use, they are certified for repeated 2bar-134°C (273°F) steam autoclaving, EO, and low-temp plasma without compromising insulation or tensile strength.

🧬 3. How do you ensure safety during high-frequency energy and gas delivery?

We conduct 100% dielectric and leakage-proof testing in our ISO 13485 facility. Our advanced EMC shielding ensures stable surgical imaging and zero electrical breakdown.
