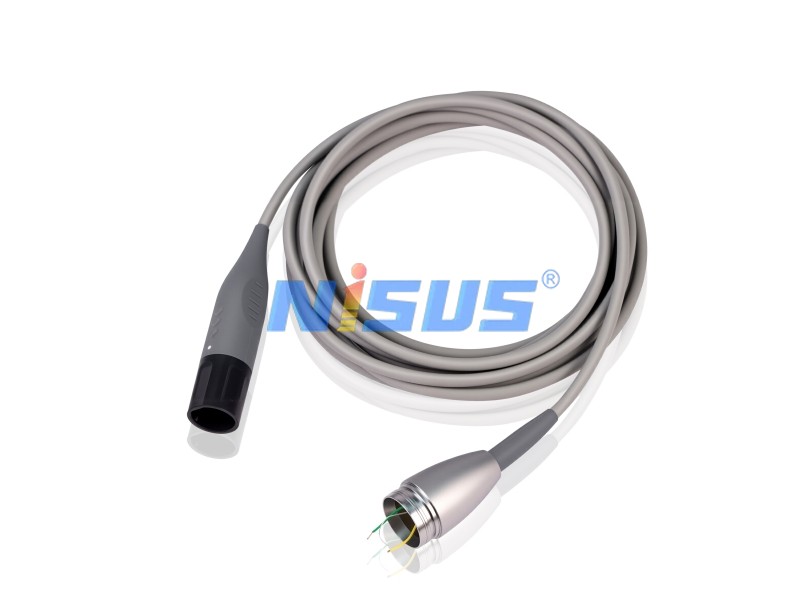

Ultrasonic Instrument Electrode Cable Connector Assembly

Name: Ultrasonic Instrument Electrode Cable Connector Assembly
Availability: InStock

This high-frequency surgical instrument cable assembly is designed for systems requiring stable power output.
Product Advantages:
High Flexibility: Highly flexible and lightweight, with a natural drape and minimal tangling.
Bending Strength: Signal performance remains unaffected even in bending environments.
Tensile Strength: High-strength tensile handle design prevents damage during pulling.
Water and Moisture Resistance: Liquid-molded silicone construction suitable for liquid exposure environments.
Feel: Smooth, high-tear-resistant silicone sleeve surface that resists dust.

Customization type: Customized

Inquiry Now

High-frequency cable assemblies

Professional interconnection solutions for ultrasonic scalpel systems

Performance Parameters

Structural Dimensions

Coaxial cable + multi-core wire + shielding layer + silicone sheath | Outer diameter: 4.6mm | Gray (customizable upon request)

Color and Appearance

Standard black/grey/blue (PT available upon request)

Length

Standard 3M (Design requirements based on customer equipment application scenarios)

Pressure Resistance

Dielectric strength of the finished core material (designed according to the power requirements of the equipment)

Temperature Range

-40°C~200°C

Transmission Class

EMC Requirements

Meets medical electromagnetic compatibility requirements

Bending Resistance

The design is based on the application scenario and service life requirements of the equipment.

Flame Retardant Rating

HB/V5/V2/V1/V0 (as per customer requirements)

Waterproof Rating

IP67 (Per customer requirements)

Environmental Protection Rating

RoHS 2.0 / FDA / Biocompatibility (As per customer requirements)

Mating Cycles

>500 cycles

Lifespan

Disposable / Reusable (As per customer requirements)

Packaging Method

Aseptic packaging / Non-aseptic packaging / Antistatic packaging(According to customer requirements)

Validated Disinfection Method

* Validation needs to be conducted by the customer's equipment vendor based on specific clinical needs.

Method	Parameters/Conditions
Cleaning	Ultrasonic cleaning and 75% alcohol cleaning
High Temperature	2 bar ~ -134°C
Gases and Chemicals	Ethylene oxide and ozone
Radiation	Electron beam irradiation (Dose ≤ 25 Gy)
Plasma	Low-temperature plasma (Concentration ≤ 65% H2O2)

Product Application Fields

The ultrasonic surgical lead wire is precision-engineered for advanced energy surgery.

Designed for Ultrasonic Surgical

🔌 Minimal Thermal Damage: Limits lateral heat spread to protect delicate surrounding tissues and nerves.
📏 Enhanced Precision: High-frequency vibrations enable effortless dissection of tough connective tissues.
🧵 Increased Patient Safety: Eliminates stray current risks, preventing accidental burns during surgery.

FAQ

Get more information about our products. Have a quote today!

🔄 1. What sterilization methods are compatible with these ultrasonic cables?

These cables are designed for professional medical sterilization, including 2bar-134°C high-temperature autoclaving, Ethylene Oxide (EO), and low-temperature hydrogen peroxide plasma.

📶 2. Are the connectors customizable for specific ultrasonic handpieces?

Yes, we provide precision-molded connectors tailored to specific pin configurations and housing requirements of your ultrasonic instruments.

🧬 3. How do you ensure the electrical safety of each lead wire?

Every unit undergoes 100% polarity continuity testing and dielectric withstand voltage tests in accordance with ISO 13485 quality management systems.
