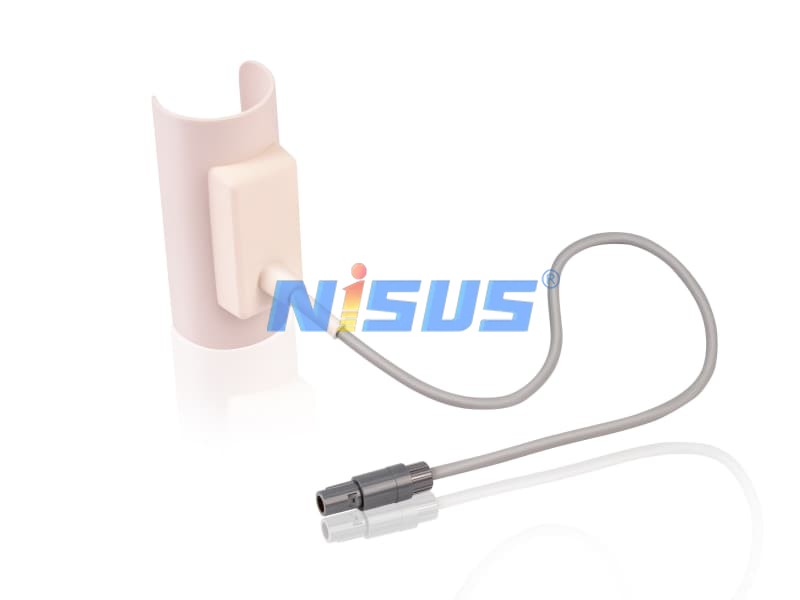

Name: Medical diagnosis and treatment syringe & External heating sleeve
Availability: InStock

This external preheating sleeve component is specially designed to assist in heating nutrient solutions and medicinal liquids. It can keep the medicinal liquid administered to the human body at around 35-37°, which is consistent with the body's constant temperature for preservation, thereby accelerating the absorption of the medicinal liquid. It is one of the new products and is particularly suitable for northern regions or some areas with relatively low temperatures.

Product Advantages:

High flexibility: Wrap-type heating, with uniform heat distribution.

Operationality: Free to adjust the temperature of the heating tubes.

Bend resistance: Capable of withstanding bending scenarios without losing heating performance.

No odor: Utilizing platinum-sulfurized heating, it has no odor.

Customization type: Customized

Inquiry Now

External preheating sleeve assembly

Solution for Heating Medical Syringes

Performance Parameters

Structural Dimensions

Heating wire + inductive probe + silicone cable + protective sheath

Color and Appearance

Standard gray (PT according to customer requirements)

Application Length

Spring-retractable coil/straight (designed according to customer's device application requirements)

Operating Parameters

24V 1A (designed according to heating electrical power requirements)

Temperature Range

40 degrees Celsius

Transmission Class

EMC Requirements

Bending Resistance

(designed according to device application and lifespan requirements)

Flame Retardant Rating

HB (as per customer requirements)

Waterproof Rating

IP65 (as per customer requirements)

Environmental Rating

RoHS2.0/FDA/Biocompatible (as per customer requirements)

Mating/Removal Cycles

>500 cycles

Lifespan

Repeatability (as per customer requirements)

Packaging

Anti-static packaging (as per customer requirements)

Validated Disinfection Methods

*To be validated by the customer based on specific clinical needs

Method	Parameters / Conditions
Cleaning	Ultrasonic cleaning & 75% Alcohol wipe
High Temperature	2bar ~ 134°C
Gases and Chemicals	Ethylene Oxide (EtO) and Ozone
Radiation Sterilization	Electron Beam (Dose ≤ 25 Gy)
Plasma Sterilization	Low-temp Plasma (≤65% H2O2)

Product Application Scenarios

Optimized for clinical fluid warming to enhance patient comfort and medical efficacy.

Syringe and Infusion Warming

❄️ Ideal for Colder Climates: Maintains nutrient and medicinal fluids at 35-37°C, crucial for northern or winter environments.
🩺 Enhanced Absorption: Pre-warmed fluids consistent with human body temperature accelerate the absorption of medicinal fluids.
🛡️ Reliable Design: Internal electronic components are treated for high-temperature resistance to ensure long-term stability.

Frequently Asked Questions

Understand the technology and clinical advantages of our heating solutions.

🔥 1. What are the core components of the silicone heating jacket?

The assembly is integrated with four major components: heat-conducting wire, medical-grade silicone, electrical wires, and an electric sensor for precision feedback.

🌡️ 2. Why is pre-warming infusion fluids important in clinical settings?

Pre-warming nutrient and medicinal fluids to 35-37°C (near body temperature) helps prevent thermal shock to the patient and significantly accelerates the absorption rate of the fluids into the bloodstream.

⚙️ 3. Does the wrap-around design allow for flexibility during use?

Yes, the product is designed with high flexibility. The internal components and heating wires are engineered to withstand bending and folding without compromising the heating performance or electrical integrity.

🧪 4. What material technology is used for safety and hygiene?

We utilize a platinum-cured silicone system. This ensures the jacket is safe, odorless, and provides a very uniform heat conduction area, meeting strict ROHS, REACH, and FDA standards.

🔄 5. Is the heating jacket compatible with standard sterilization?

Absolutely. The high-temperature silicone and internal electronic treatments allow the product to be cleaned with 75% alcohol, or sterilized via Autoclave (134°C), EtO/Ozone, or Low-temp Plasma methods.
